$20,750
Condition:
Used
Year:
2019
Make:
Caterpillar
Model:
TL943D
Hours:
1,393
Drive Type:
4WD
Engine Size:
3.6L
Cylinders:
4
Color:
Yellow
Description
Condition: Used
Hours: 1,393
Overview

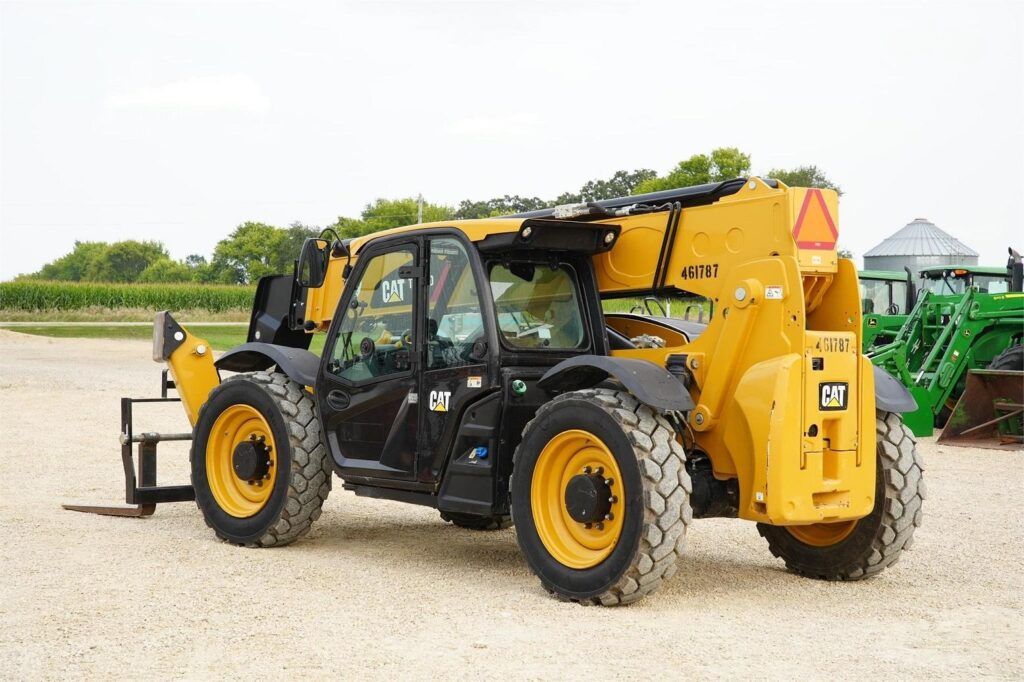

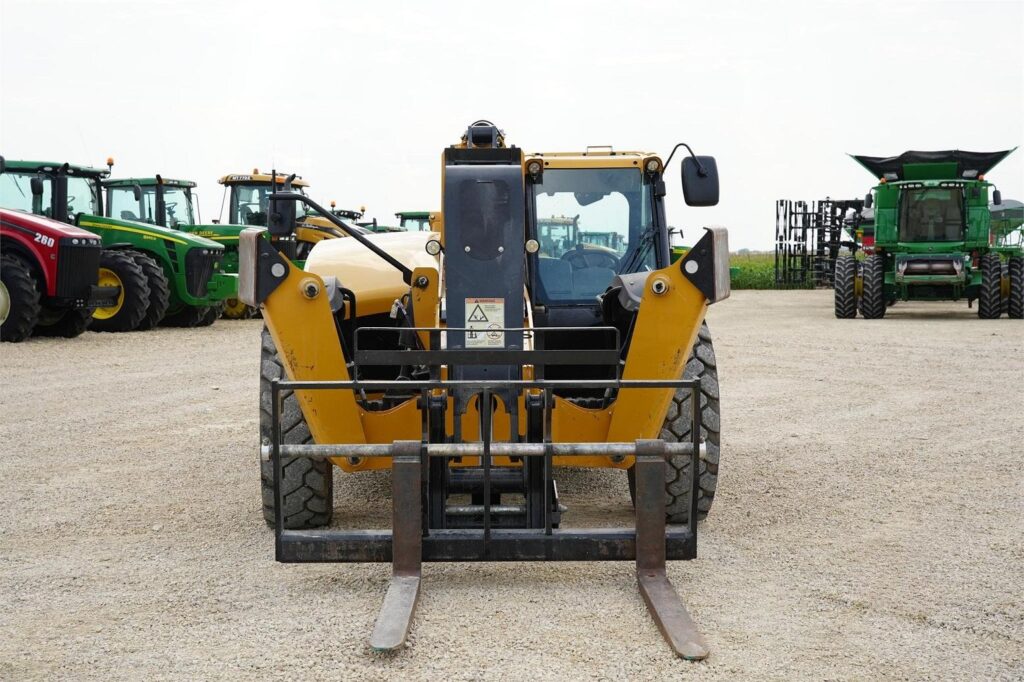

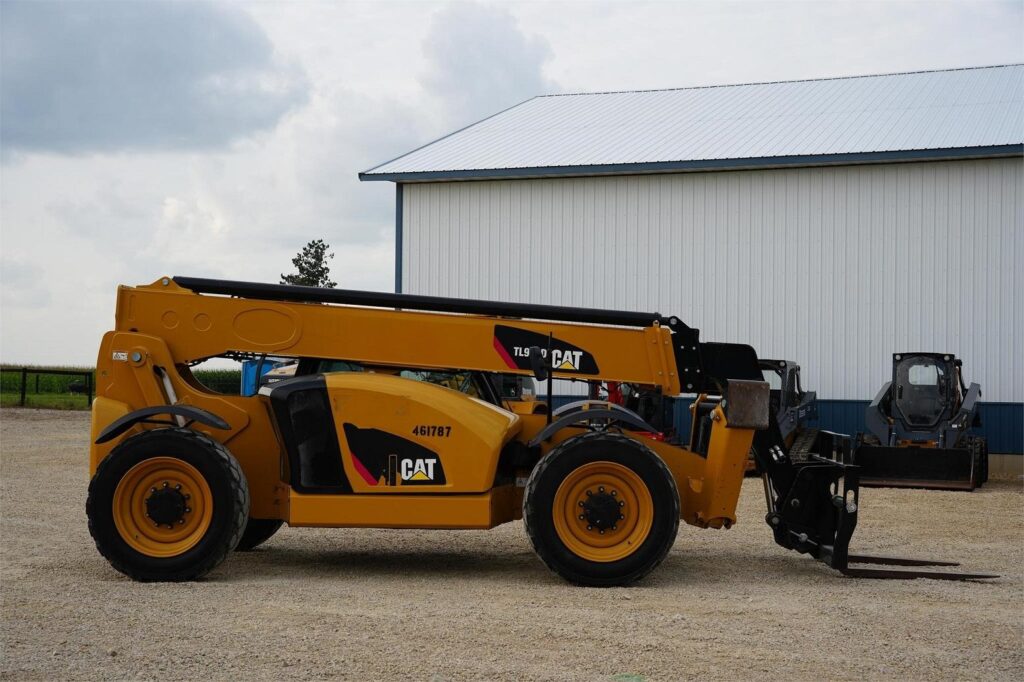

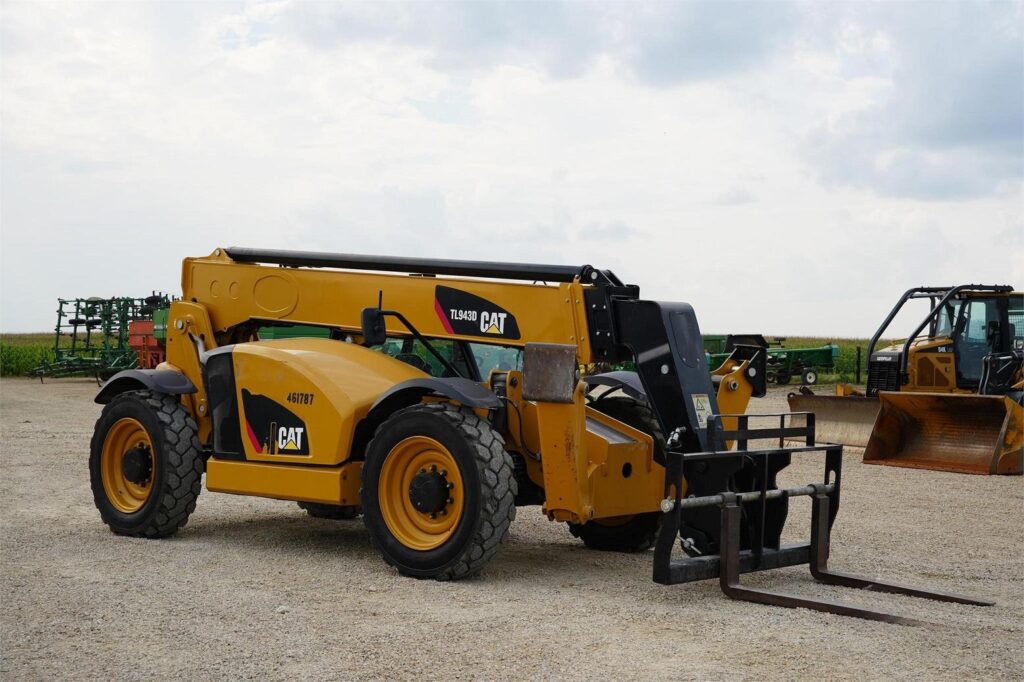

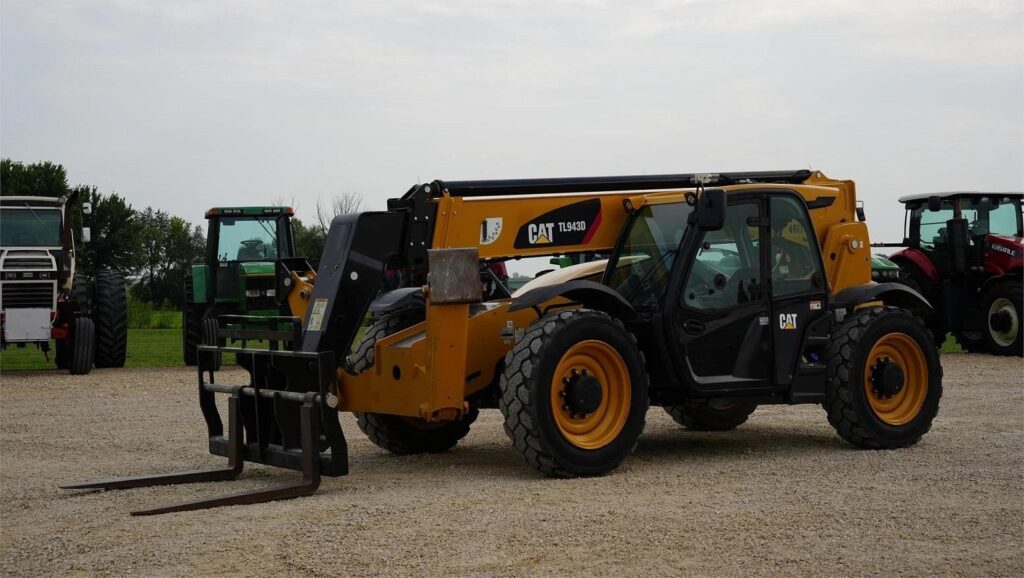

This 2019 CAT TL943D is in very nice, like-new condition and comes fully equipped for heavy-duty lifting, site work, and material handling. With low hours, an enclosed climate-controlled cab, backup camera, and foam-filled tires, this unit is work-ready and well maintained.
Engine & Powertrain
Engine Model: Cat C3.6L
Condition: Used
Hours: 1,393
Overview
This 2019 CAT TL943D is in very nice, like-new condition and comes fully equipped for heavy-duty lifting, site work, and material handling. With low hours, an enclosed climate-controlled cab, backup camera, and foam-filled tires, this unit is work-ready and well maintained.
Engine & Powertrain
Engine Model: Cat C3.6L
Engine Type: 4-cylinder turbo diesel
Engine Displacement: 3.6L (3,600 cc)
Gross Power: 111 HP (83 kW)
Transmission: Cat PG145 6-speed powershift (4 forward, 3 reverse)
Drive: 4-wheel drive
Steering: 4-wheel steering with 55-degree articulation
Operating Specifications
Rated Load Capacity: 9,000 lbs (4,082 kg)
Maximum Lift Height: 43 ft (13.1 m)
Capacity at Maximum Lift Height: 7,000 lbs (3,175 kg)
Maximum Forward Reach: 31 ft (9.4 m)
Capacity at Maximum Reach: 1,200 lbs (544 kg)
Frame Leveling: 10-degree tilt
Top Travel Speed: 18 mph (29 km/h)
Dimensions
Length to Fork Face: 20.5 ft (6.23 m)
Width: 8 ft (2.47 m)
Height: 8.16 ft (2.49 m)
Wheelbase: 11.25 ft (3.34 m)
Ground Clearance: 17 in (432 mm)
Turning Radius (Over Tires): 12 ft (3.7 m)
Weights
Operating Weight: 25,750 lbs (11,680 kg)
Hydraulic System
System Operating Pressure: 3,770 psi (260 bar)
Auxiliary Hydraulic Pressure: 3,481 psi (240 bar)
Auxiliary Hydraulic Flow: 25 gal/min (94 L/min)
Auxiliary Hydraulics: Included for attachment compatibility
Tires
Type: Foam-filled
Size: 370/75-28
Operator Cab
Cab Type: Enclosed ROPS/FOPS
Climate Control: Heat and air conditioning
Seat: Vinyl suspension seat
Controls: Single electronic joystick with adjustable wrist rest
Visibility: Equipped with backup camera
Instrumentation: Volt meter, hourmeter, engine oil pressure gauge, fuel gauge, water temperature gauge
Additional Features
Attachments: 4′ forks
Front Hydraulics: Yes
Backup Camera: Yes
Foam-Filled Tires: Yes
Frame Leveling: 10-degree tilt for improved stability
Coupler: Manual Integrated Toolcarrier (IT)
Fenders: Yes
Engine Block Heater: 110V
Wipers and Indicators: Manual lever controls
Condition:
Used
Year:
2019
Make:
Caterpillar
Model:
TL943D
Hours:
1,393
Drive Type:
4WD
Fuel Type:
Diesel
Engine Size:
3.6L
Cylinders:
4
Color:
Yellow
